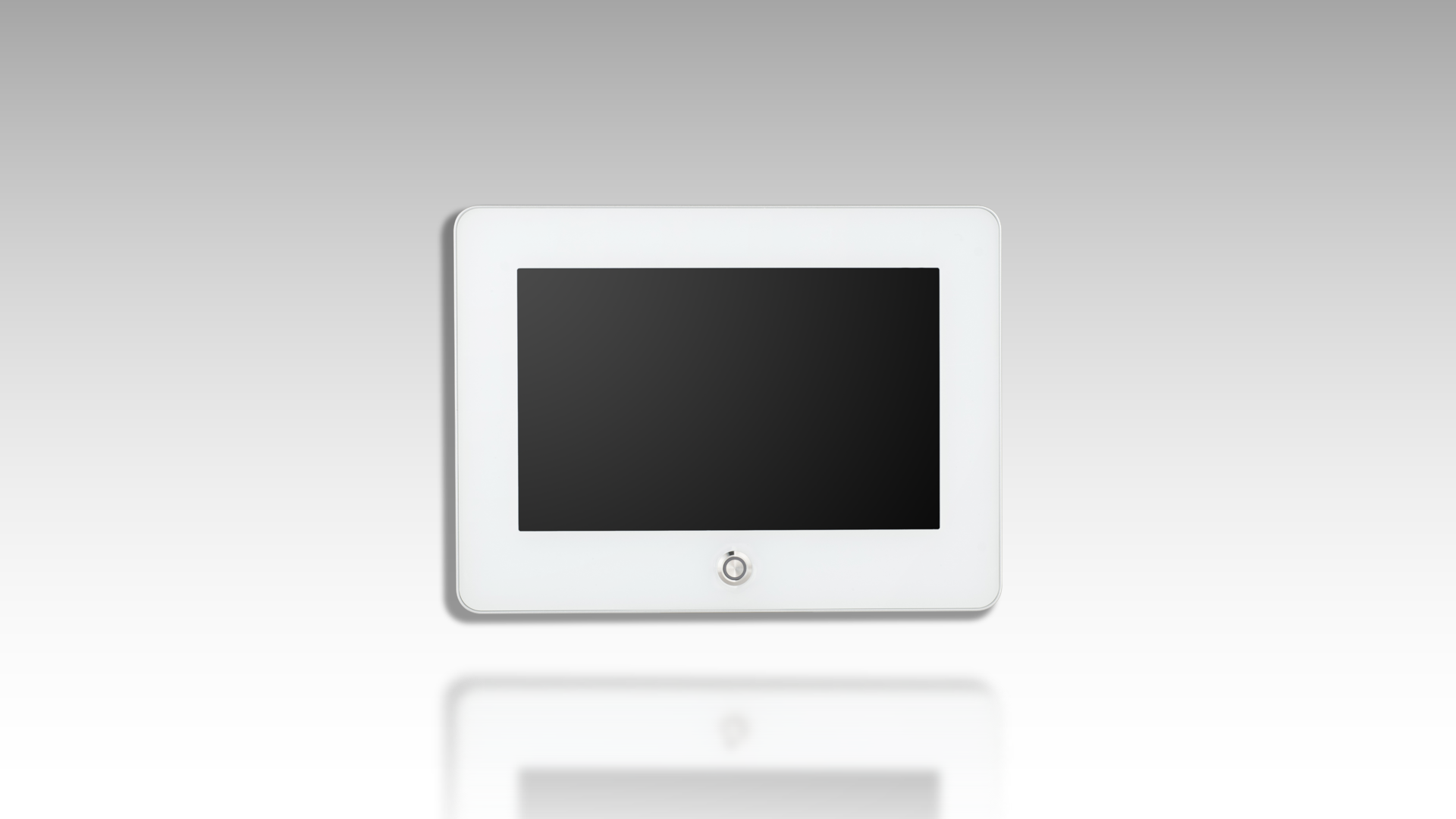

PO-1001P-NV
(40 cm ~ 100 cm)
PO-1001P-NV
The most advanced near-distance Binocular vision tester.
Screen type: Linear or Circular polarized
Test distance: 40cm ~ 100cm
Product Overview
Designed for precise binocular testing at reading and smartphone distances (40–100cm). Compact, polarized, and made for real-world near vision care.
Key Features

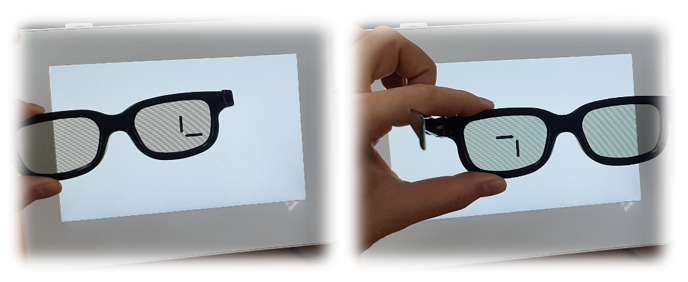

Exceptional Polarization Quality
*Unedited, actual photo: high-quality polarization with no ghosting effect.

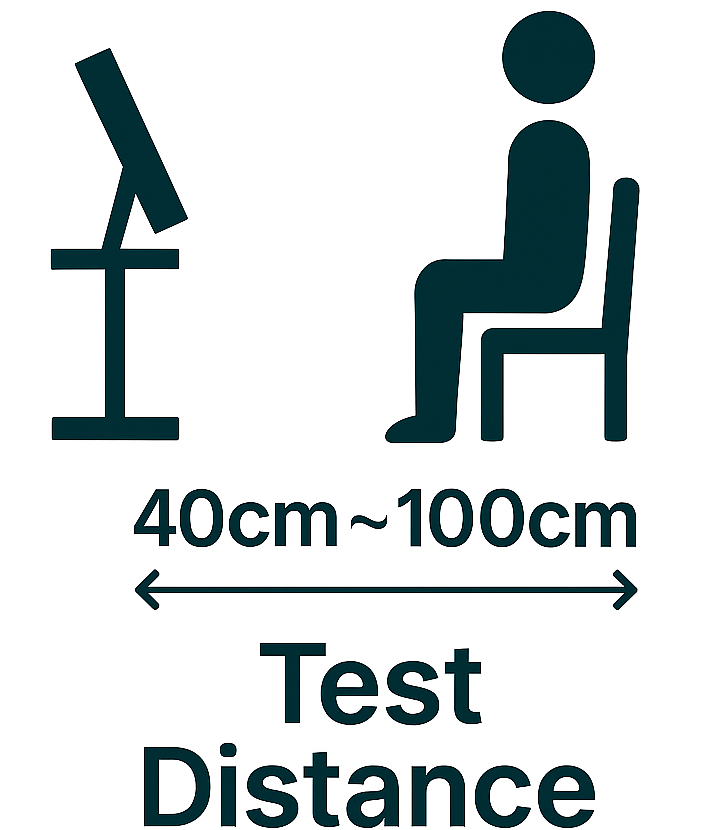

Test Distance
Our cutting-edge polarization technology enables precise binocular testing at near distances. Adjustable from 40cm to 1.0m in 10cm steps.

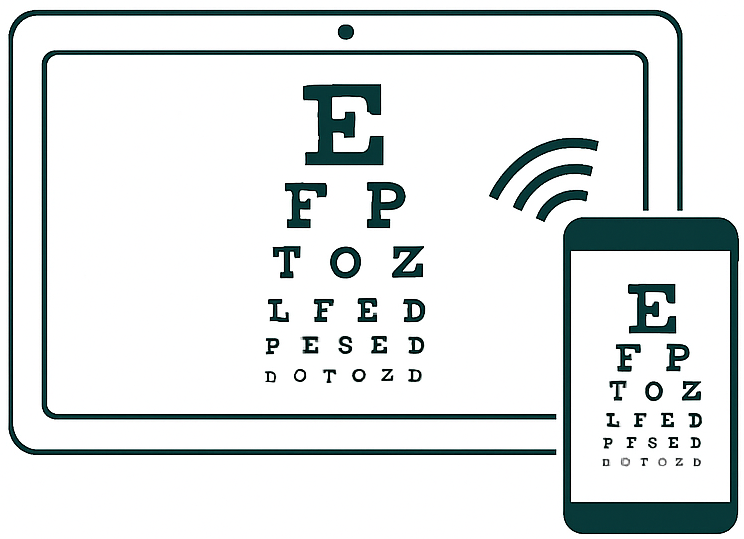

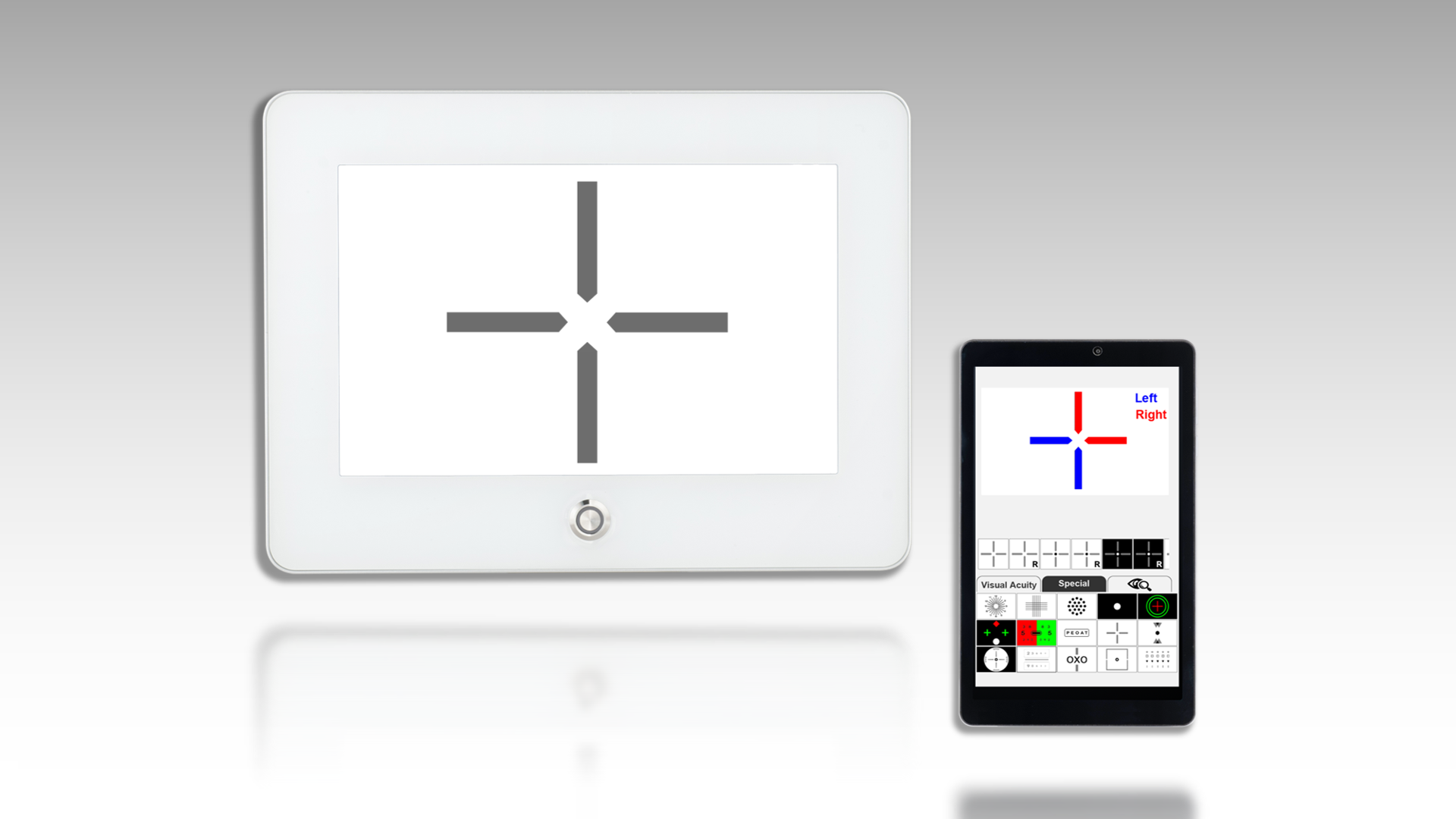

Smart Controller
You can conduct examinations without constantly checking the vision chart screen. This allows you to focus entirely on the patient using the included tablet.
All-in-One Solution
Ultra-quiet operation with fanless, low-heat design. Over 100 types of vision tests can be performed with a single device.
Ultra-Quiet & Energy-Efficient
Fanless, low-heat architecture ensures silent operation and energy savings.

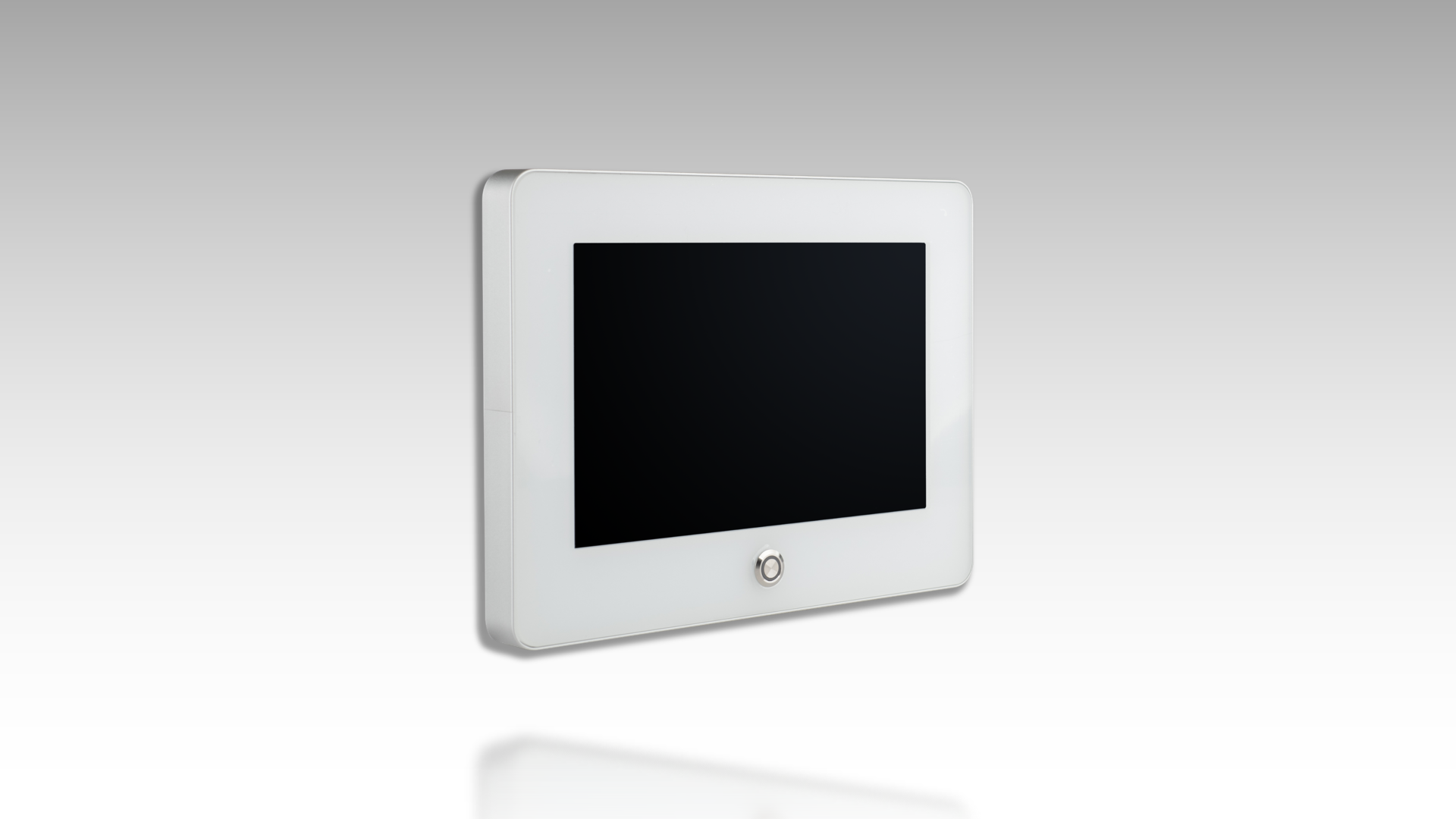

Full-Metal Lightweight Body
Durable, non-discoloring exterior designed for easy installation. Its compact size fits well in limited clinical spaces.
Advanced Software Functions

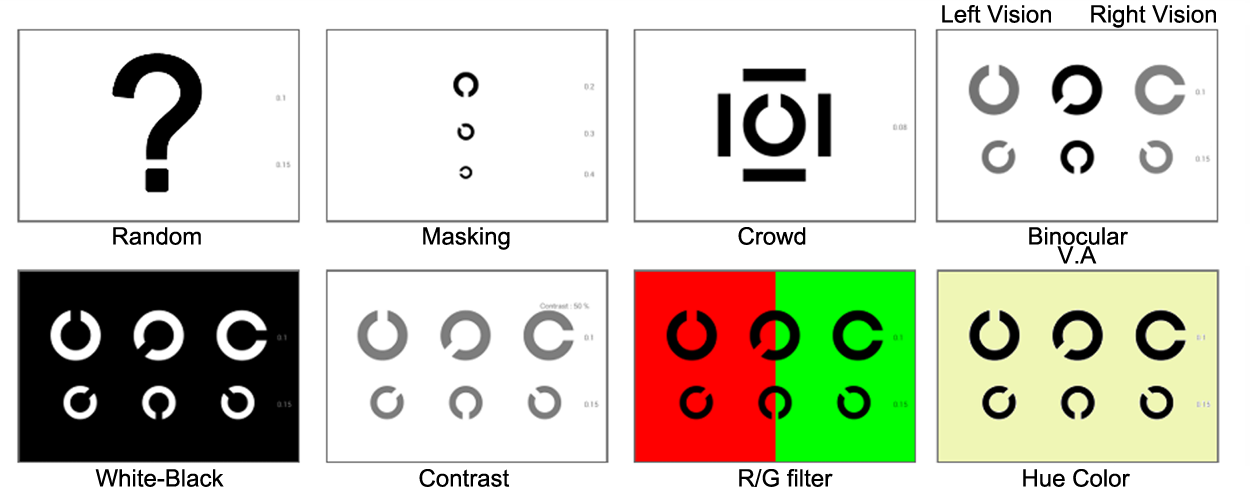

👁️ Various Vision Acuity Tests
Supports a wide range of vision acuity patterns: Random, Masking, Crowd, Binocular VA, White-Black Inversion, Contrast, and Red/Green Filter.
📺 Photo Slide & Video Playback
Display videos or slides via USB for patient education (e.g., myopia, hyperopia, astigmatism) or clinic advertising during screen saver mode.
Certifications & Standards
CE, FCC, KFDA, ISO-13485 certified.
Product complies with:
- EN ISO 15004 (Ophthalmic instruments - general requirements)
- EN ISO 10938 (Chart projectors)
- EN ISO 8596 (Visual acuity testing - optotype presentation)

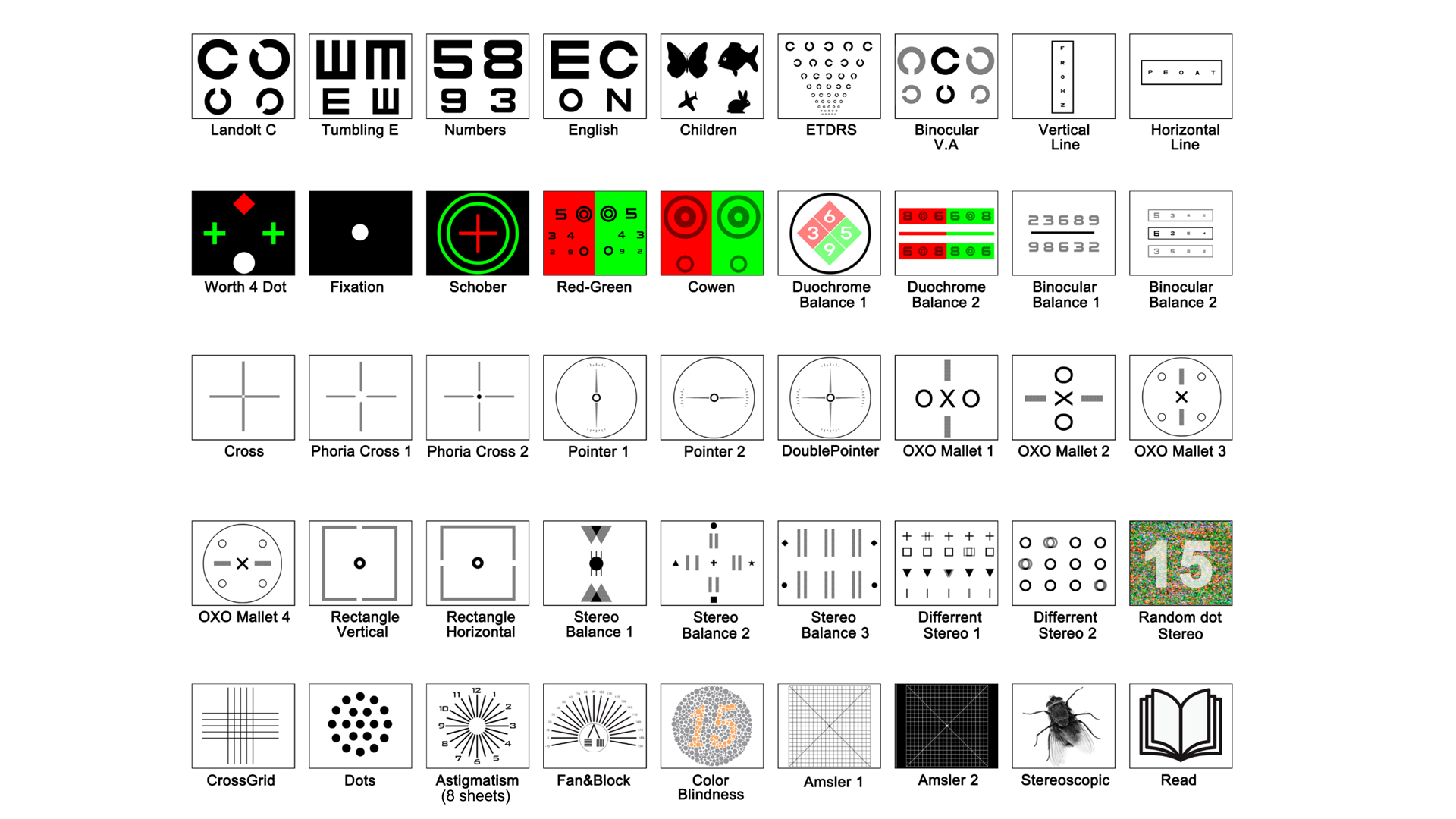

Available Chart List
Specifications
| Display | |
|---|---|
| Type | 10.1 Inch LCD |
| Resolution | 1920(H) x 1200(V) Pixels |
| Functions | |
| Chart | Landolt, Tumbling E, Numbers, Letters, Child/Pigassou, Special |
| Masking | Single / Horizontal Line / Vertical Line |
| Filter | Red and Green / Circular Polarized Filter |
| Special Functions | Mirror mode, Contrast, White & Black Reverse, Random, Crowd |
| Working Distance | 40cm to 100cm (Step 10cm) |
| Control Device | Tablet PC (Basic) |
| Screen Saver Function | Screen off / Chart show (OFF, 5sec, 10sec, 30sec) |
| Screen Saver Waiting Time | 5min / 10min / 30min |
| Specifications | |
| Body | 278(W) x 207(H) x 46(D) mm , 1130g |
| Power Supply (Main) | DC 12V 3.4A |
| Power Supply (Adapter) | AC100 to 240V / 50/60Hz |
| Power Consumption | 30VA |
| Normal Life Span | 7 years |
| Included Items | |
| Mount | 1 set |
| Glasses | Pola / Red and Green |
| Remote Control | 1 pc |
| Adapter | 1 pc |
| Power Cable | 1 pc |
