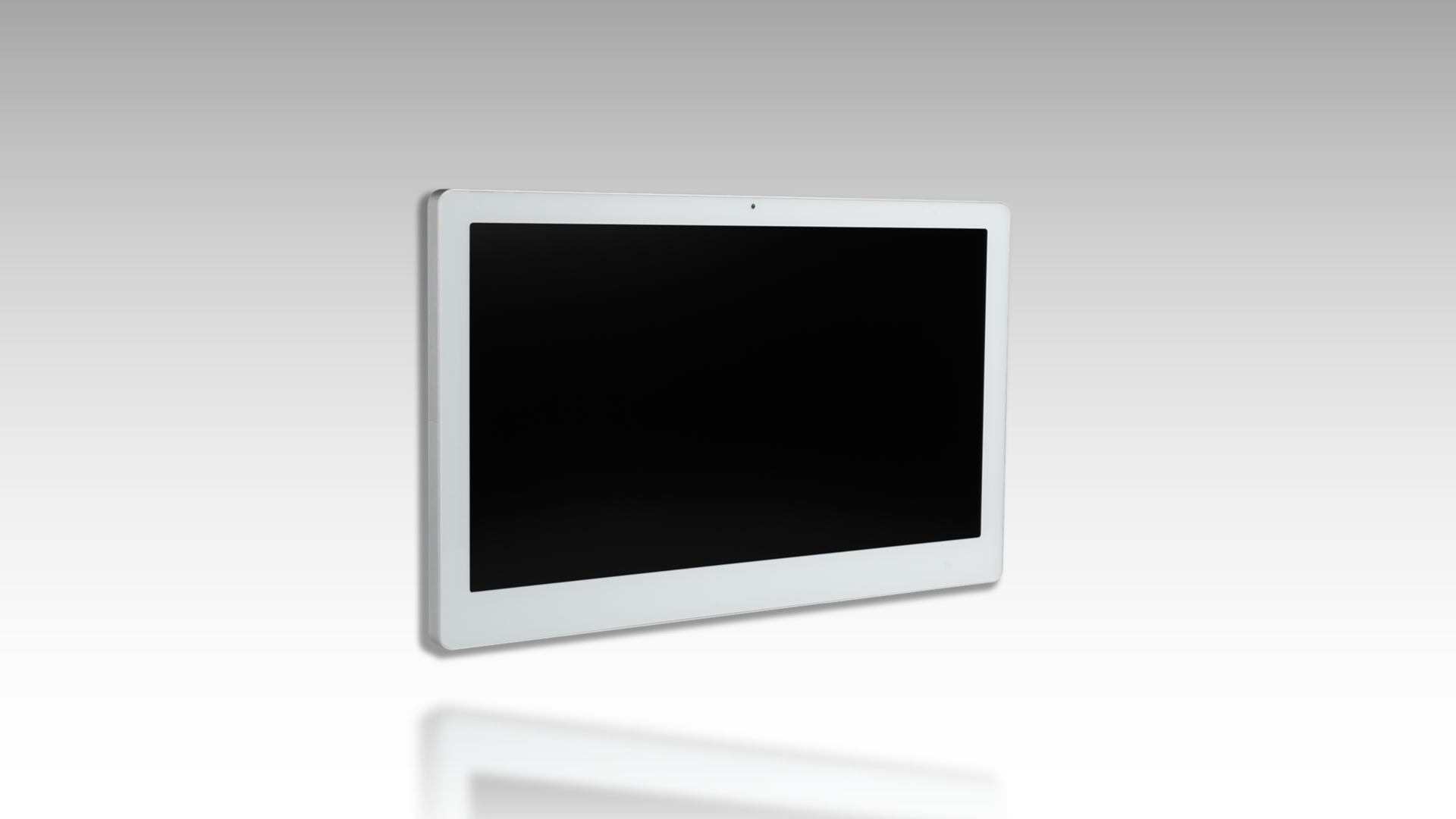

PO-1001 (1m ~ 8m)
PO-1001
The best solution for binocular vision testing.
Screen type: Linear or Circular polarized , Normal
Test distance: 1m ~ 8m
Product Overview
PO-1001 supports advanced binocular vision tests such as stereopsis, phoria, and fusion through high-precision polarization. When used with polarized filters, the system delivers highly accurate and consistent results—meeting the demands of modern clinical environments. Its compact, fanless design and over 50 integrated test patterns make it a practical and professional choice for eye care specialists.
Key Features
Ultra-Quiet & Energy-Efficient
Fanless, low-heat architecture ensures silent operation and energy savings.
Full-Metal Lightweight Body
Durable, non-discoloring exterior weighing only 4kg, designed for easy installation.

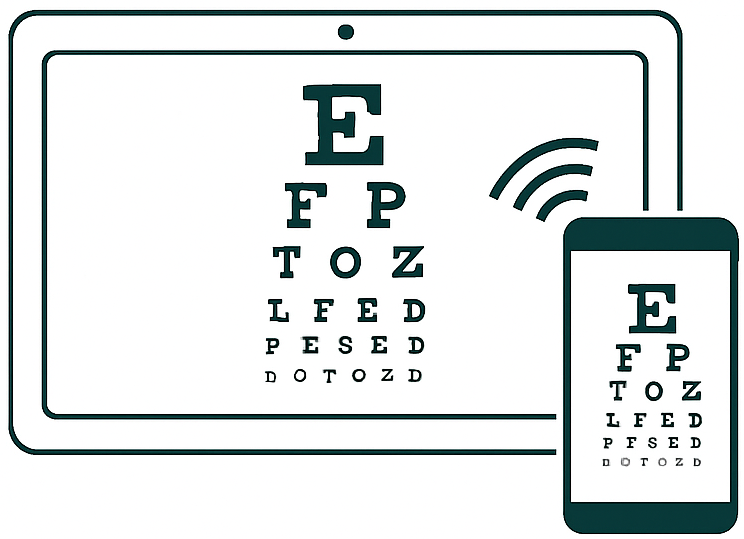

Smart Controller(Optional)
Operate seamlessly without monitoring the screen, focusing entirely on the patient.

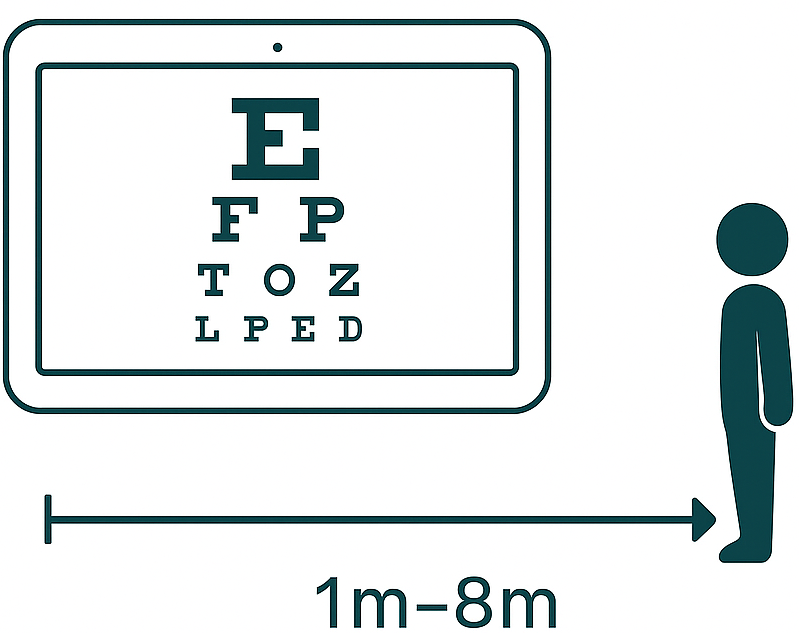

Flexible Test Distance
Adjustable from 1.0m to 8.0m in 0.25m increments for various clinical setups.

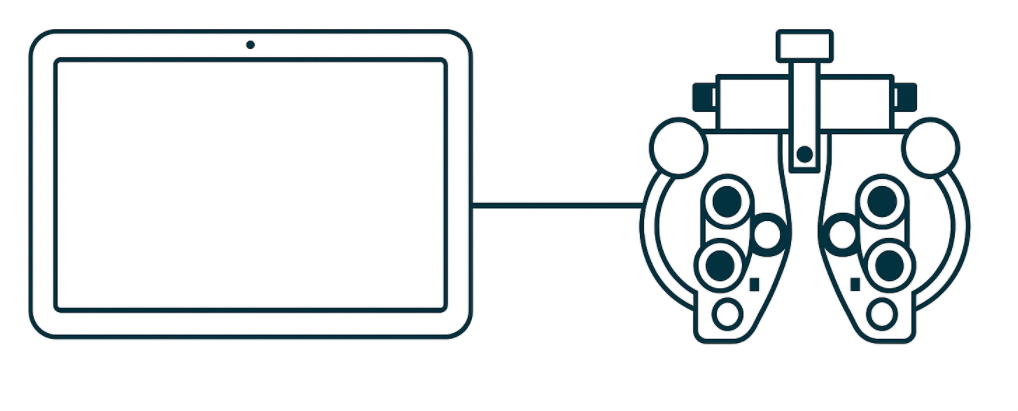

Compatibility with Various Phoropters
Our vision charts are compatible with a variety of phoropter devices:
- Huvitz: HDR-9000, HDR-700, CDR-3100
- Topcon: CV-5000
- Nidek: RT-6100, RT-5100
- Essilor: APH-550
- Unicos: UDR-800, UDR-700
- Potec: PDR-7000
And also you can ask us new connection to your devices.

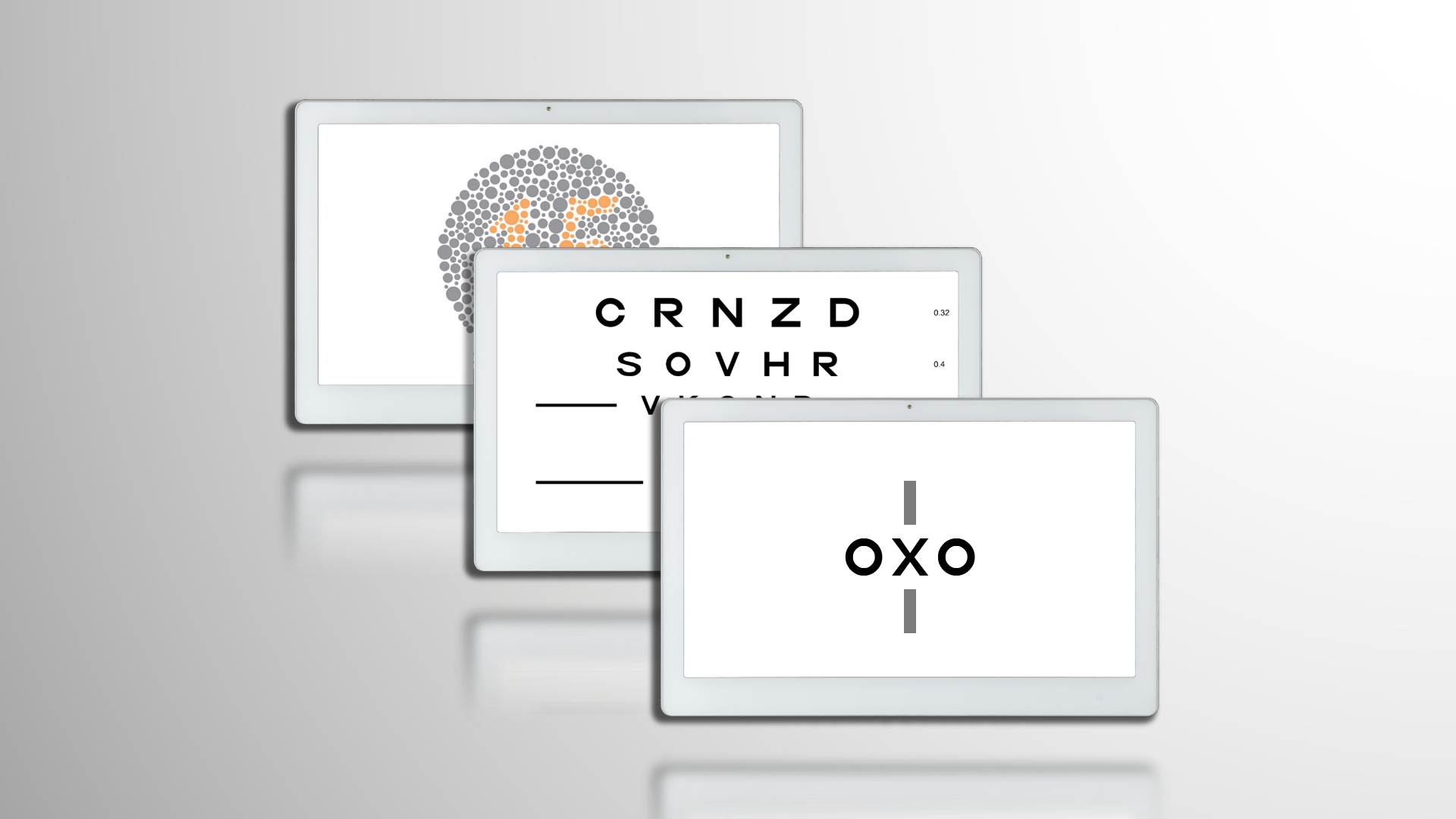

All-in-One Solution
All-in-One Solution This compact device consolidates over 50 vision testing functions, including acuity, binocular tests, color vision, contrast sensitivity, and media playback. It eliminates the need for multiple instruments, allowing seamless workflow within a single platform. Clinicians can switch between test types without changing equipment, improving both speed and convenience. Its streamlined design helps maintain a clean clinical environment. A truly versatile solution for today’s comprehensive vision care.
Advanced Software Functions

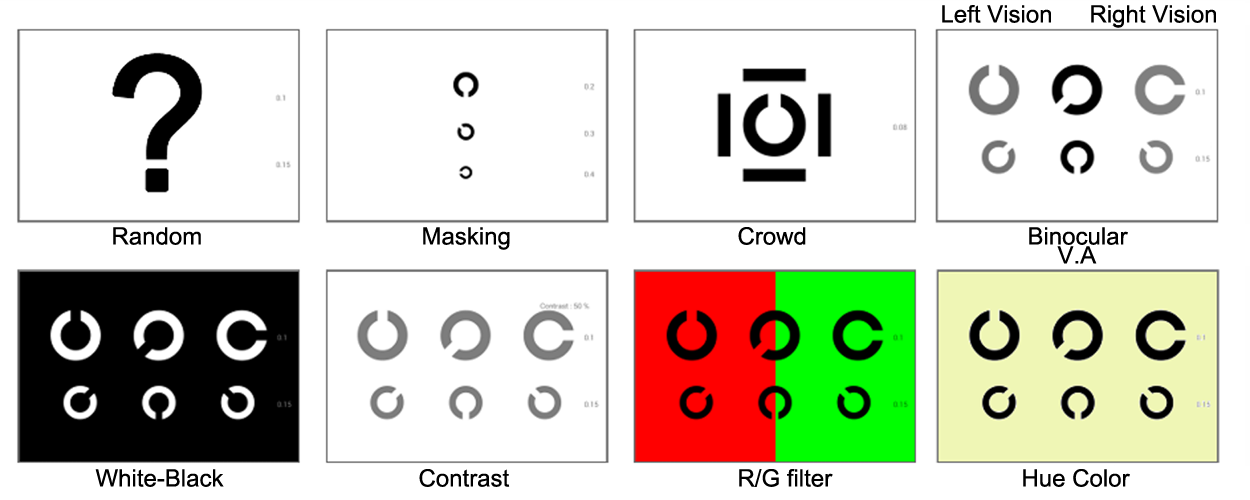

👁️ Various Vision Acuity Tests
Supports a wide range of vision acuity patterns: Random, Masking, Crowd, Binocular VA, White-Black Inversion, Contrast, and Red/Green Filter.

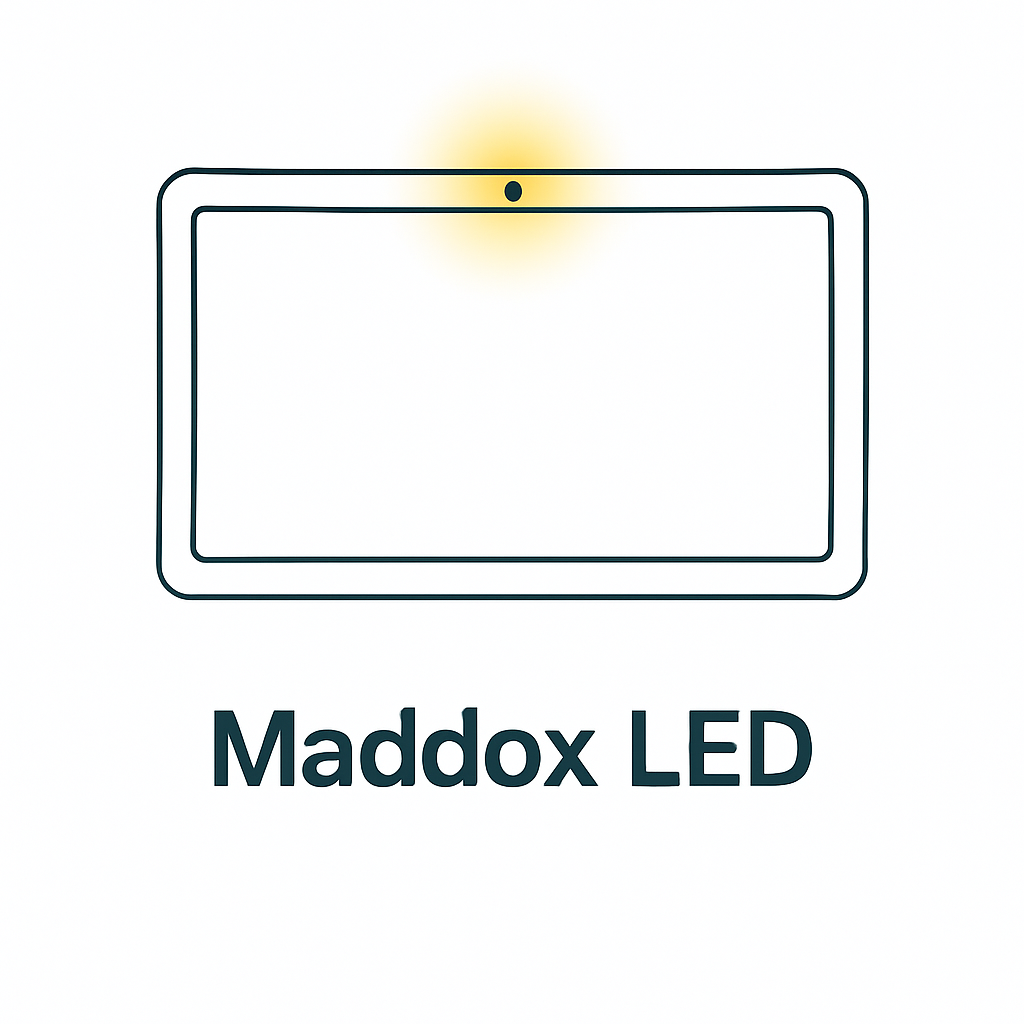

💡 Maddox LED
Integrated small LED light source ideal for Maddox tests. Adjustable in 10 brightness levels for clinical precision.

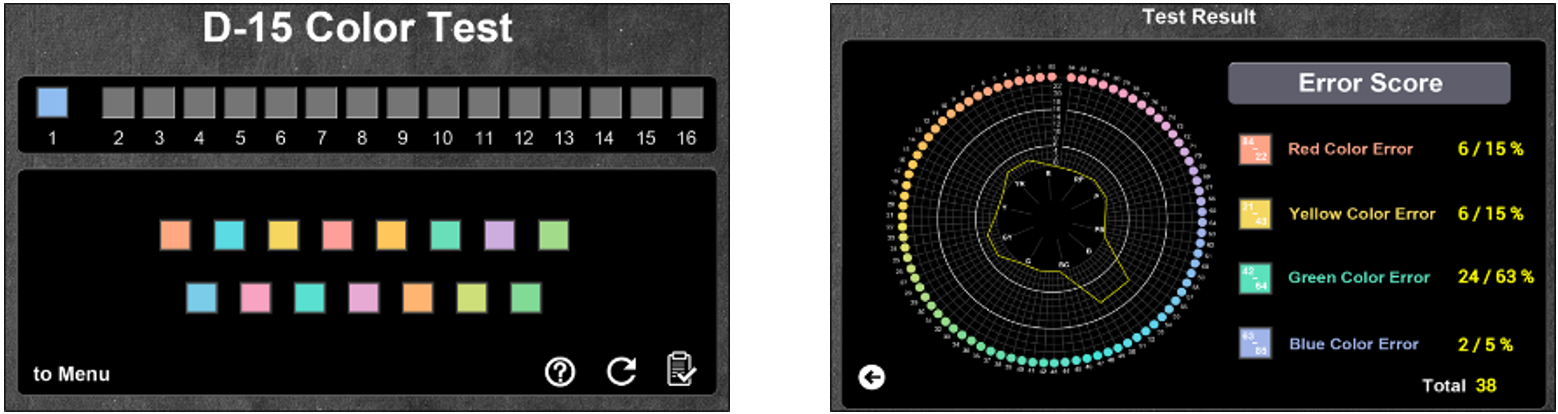

🎨 Hue Color Test
Offers 15 base colors and 85 extended colors. Results are visualized in detailed, intuitive color graphs for accurate diagnosis.

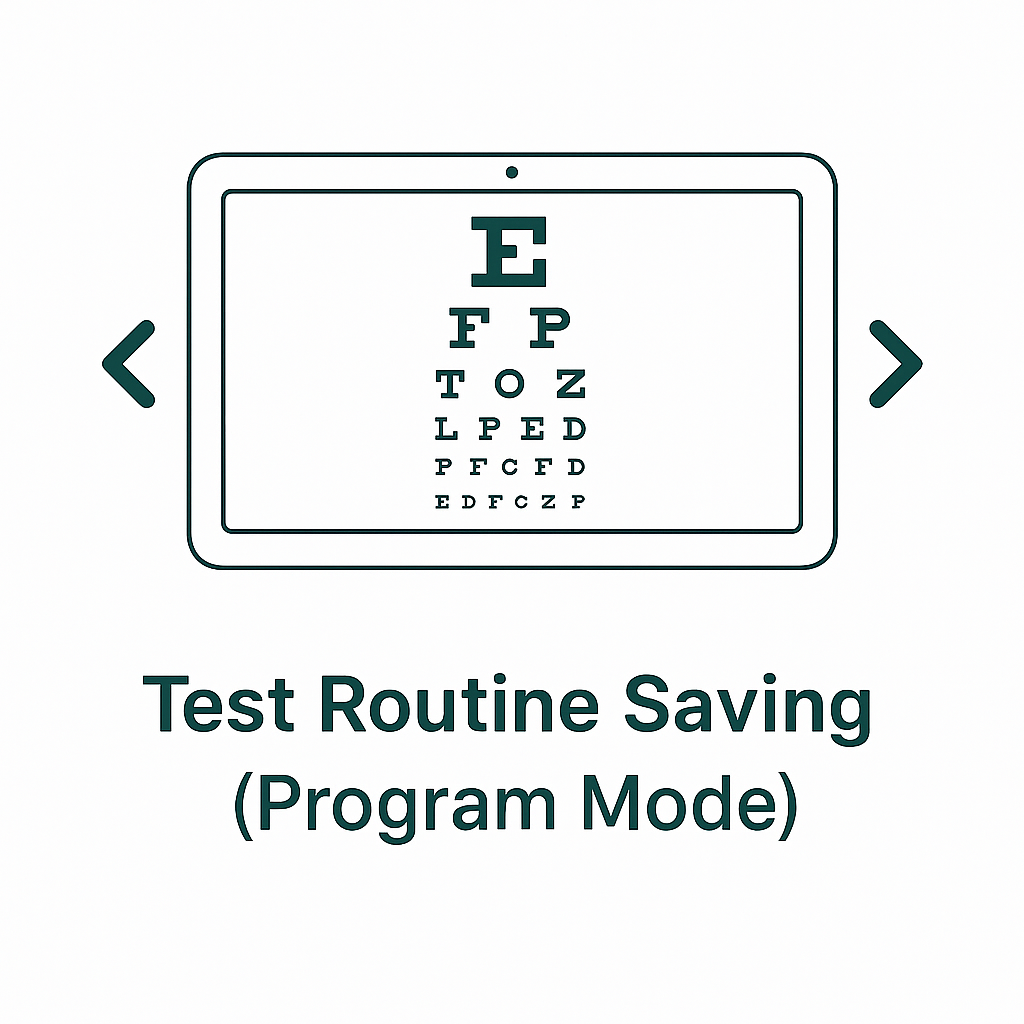

📁 Program Mode (Test Routine Saving)
Create and save customized test sequences. Easily navigate with
📺 Photo Slide & Video Playback
Display videos or slides via USB for patient education (e.g., myopia, hyperopia, astigmatism) or clinic advertising during screen saver mode.

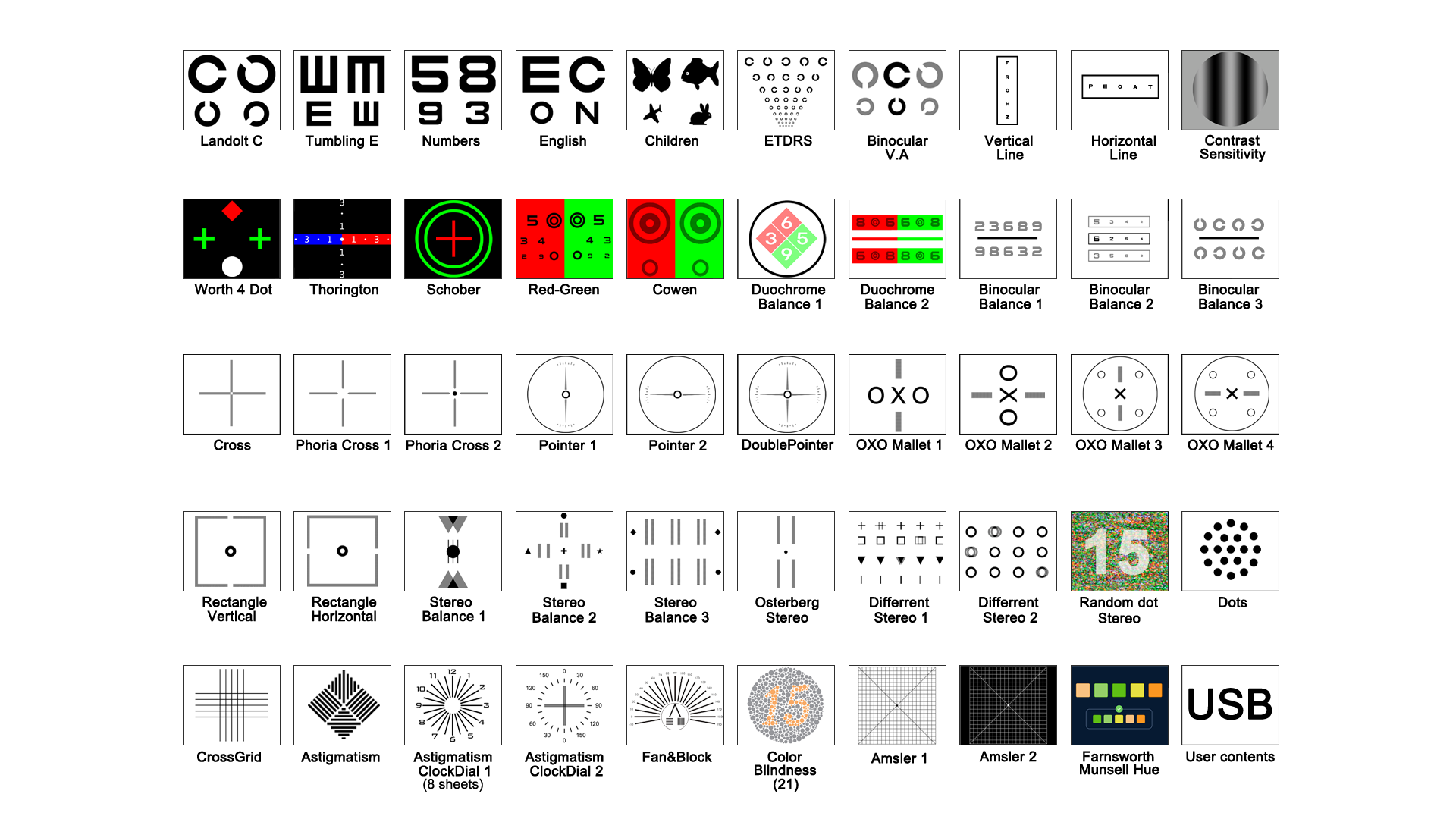

Available Chart Types
Specifications
| Monitor | |
|---|---|
| Type | 24 Inch TFT LED Backlight |
| Resolution | 1920(H) x 1080(V) Pixels |
| Functions | |
| Chart | Landolt, Tumbling E, Numbers, Letters, Child/Pigassou, Special |
| Masking | Single / Horizontal Line / Vertical Line |
| Filter | Red and Green / Circular Polarized Filter |
| Special Functions | Mirror mode, Contrast, White & Black Reverse, Random, Crowd |
| Working Distance | 1.0 to 8.0m (Step 0.25m) |
| Control Device | Wireless IR Remote / Tablet PC (optional) |
| Screen Saver Function | Screen off / Chart show (OFF, 5sec, 10sec, 30sec) |
| Screen Saver Waiting Time | 5min / 10min / 30min |
| Specifications | |
| Body | 573(W) x 363(H) x 46(D) mm / 4kg |
| Remote Control | 64(W) x 195(H) x 20(D) mm / 140g |
| Power Supply (Main) | DC 12V 3.4A |
| Power Supply (Adapter) | AC100 to 240V / 50/60Hz |
| Power Consumption | 70VA |
| Normal Life Span | 7 years |
| Included Items | |
| Wall Mount | 1 set |
| Glasses | Pola / Red and Green |
| Remote Control | 1 pc |
| Adapter | 1 pc |
| Power Cable | 1 pc |
